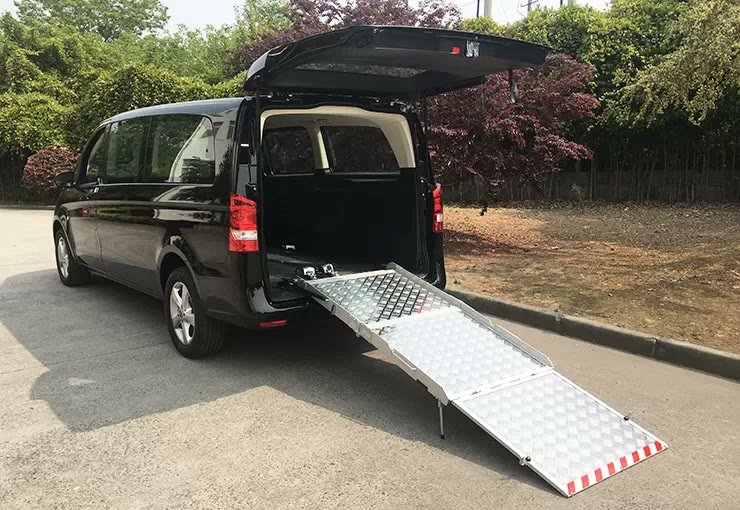

Manual 3-Fold
Aluminum Ramp

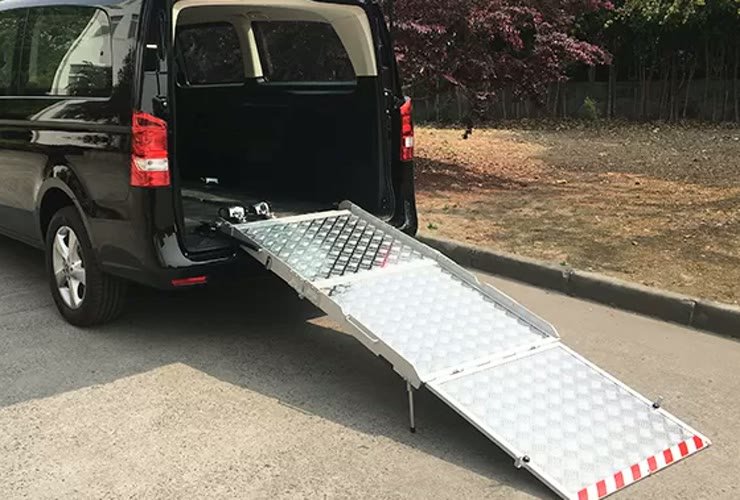

Versatile three-section folding ramp that stores vertically to free up cabin space. Engineered for full-size vans and shuttle buses with higher floor levels.
Key Features
The Manual 3-Fold Ramp delivers longer reach and stows in the tightest cabin spaces without sacrificing strength.
Three-Section Vertical Fold
Folds into a compact vertical column that mounts flush against the vehicle wall, freeing floor space for passengers.
2100 mm Reach
Extended length bridges taller floor heights of full-size vans, welfare minibuses, and shuttle buses.
Dual Safety Latches
Spring-loaded latches lock each fold joint during use and prevent accidental deployment in transit.
Edge Lip & Side Curb
Continuous side curbs prevent wheel roll-off, while a front lip anchors the ramp to the vehicle threshold.
Technical Specifications
Detailed technical parameters for the Manual 3-Fold Ramp.
| Loading Capacity | 300 kg |
| Deployed Length | 2100 mm |
| Folded Length | 720 mm |
| Ramp Width | 760 mm |
| Ramp Weight | 19 kg |
| Material | Anodized aluminum alloy |
| Surface | Anti-slip embossed tread |
| Fold Sections | 3-section hinges with latches |
| Certification | CE, E-Mark, ISO 9001 |
Compatible Vehicles
Tuned for full-size MPVs, accessible vans, shuttle buses, and welfare-converted vehicles with raised floors.
Frequently Asked Questions
Capacity, reach, safety and fit answers for the Manual 3-Fold Aluminum Ramp.
What is the Manual 3-Fold Aluminum Ramp?
It is a three-section manual ramp that reaches 2100 mm deployed but folds into a compact 720 mm vertical column that mounts flush against the vehicle wall, freeing floor space.
What are its specifications?
Capacity is 300 kg, width is 760 mm and weight is 19 kg. It is made of anodized aluminum alloy with an embossed anti-slip tread.
What safety features does it have?
Dual spring-loaded latches lock each fold joint during use and prevent accidental deployment in transit. Continuous side curbs prevent wheel roll-off, and a front lip anchors the ramp to the vehicle threshold.
Which vehicles fit the Manual 3-Fold Ramp?
It is tuned for full-size MPVs, accessible vans, shuttle buses and welfare-converted vehicles with raised floors, including Mercedes-Benz, VW, Toyota, Ford, Iveco and Fiat models.
Related Products
Explore our complete range of vehicle mobility solutions.

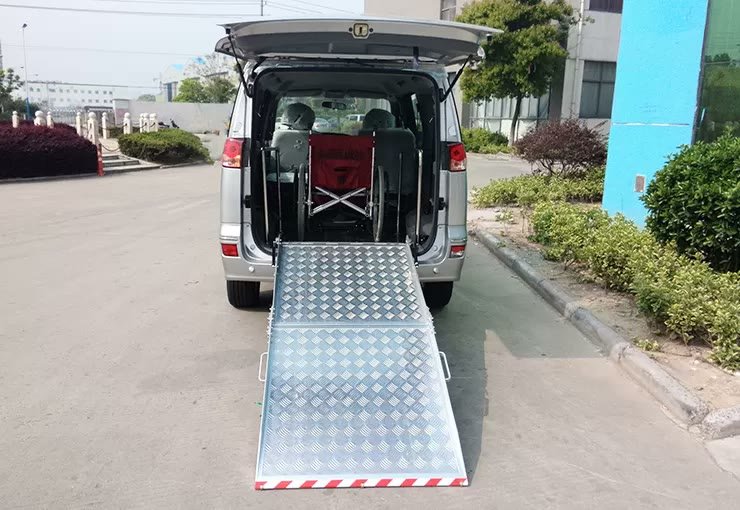

Manual 2-Fold Ramp
