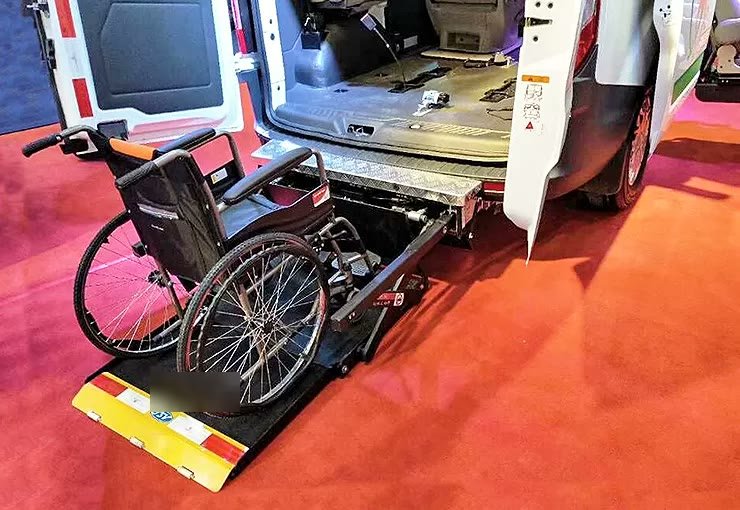

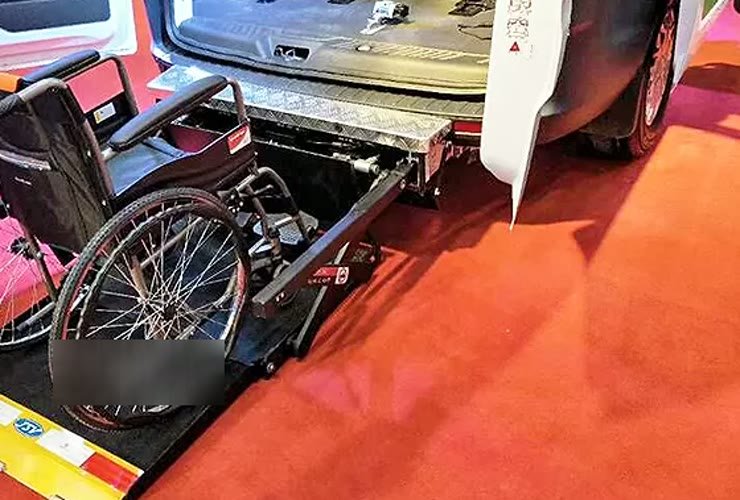

Scissor Lift
WL-880
Heavy-duty scissor lift engineered for accessible taxis, MPVs, and shuttle buses. Dual handrails and a non-slip platform make every boarding safe and stable.
Key Features
The WL-880 delivers commercial-grade lifting capacity and redundant safety for high-frequency boarding operations.
350 kg Payload
Carries a wheelchair user plus an attendant, comfortably handling 2 occupants in a single cycle.
880 mm Lift Travel
Bridges the gap between street level and the raised floor of full-size vans and shuttle buses.
Dual Safety Rails
Front, rear, and side guards with mechanical interlocks prevent unintended deployment and roll-off.
Single-Operator Control
A single attendant operates the full cycle from the wired handheld controller. No second helper required.
Technical Specifications
Detailed technical parameters for the WL-880 scissor wheelchair lift.
| Voltage | 24V DC |
| Power | 1200W |
| Loading Capacity | 350 kg |
| Lifting Height | 880 mm |
| Platform Size | 900 x 1400 mm |
| Lift Mechanism | Dual-scissor electric actuator |
| Safety | Handrails, anti-slip deck, mechanical lock |
| Control | Wired handheld controller |
| Certification | CE, E-Mark, ISO 9001 |
Compatible Vehicles
Engineered for accessible taxis, full-size MPVs, shuttle buses, and welfare-converted vans.
Frequently Asked Questions
Capacity, mechanism, safety and fit answers for the WL-880 scissor wheelchair lift.
What is the WL-880 scissor wheelchair lift?
The WL-880 is a heavy-duty scissor lift driven by a dual-scissor electric actuator, engineered for accessible taxis, MPVs and shuttle buses that handle frequent boarding.
What are the WL-880 specifications?
Payload is 350 kg, enough for a wheelchair user plus an attendant. Lift travel is 880 mm on a 900 x 1400 mm platform, powered by a 1200W actuator on 24V DC.
What safety features does the WL-880 include?
Front, rear and side guards with mechanical interlocks prevent unintended deployment and roll-off. The anti-slip deck, mechanical lock and single-operator wired handheld controller make every cycle controlled and repeatable.
Which vehicles fit the WL-880?
It is engineered for accessible taxis, full-size MPVs, shuttle buses and welfare-converted vans including GAC, FAW, VW, Mercedes-Benz, Buick and Toyota models.
